| Brand Name: | OEM ODM |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000000pcs/month |
| Attribute | Value |
|---|---|

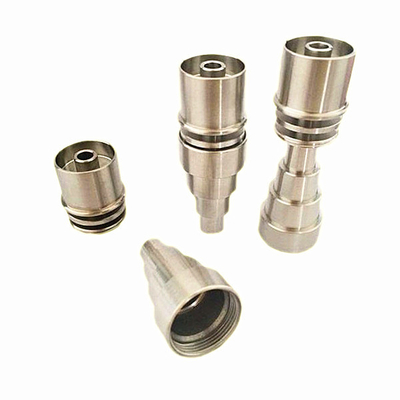

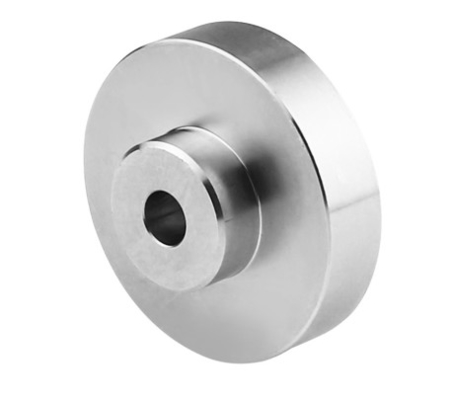

| Key words | Power Coating CNC Metal Parts |
| Material | Stainless steel, Steel, Aluminum, Copper, Brass |
| Surface treatment | Power Coating, Sandblast etc. |
| Application | Industrial/Automotive/Medical/Electronic/Aerospace |
| Tolerance | +/-0.01 |
| Design | CAD/PDF/DWG/IGS/STP |
| Service | Customized OEM, ODM |
Internal corner fillets: Design internal corner fillets to be 0.020" - 0.050" greater than a standard drill size for the radii. Follow a drill diameter to depth ratio of 1:6 (1:4 recommended) as a guideline for internal corner radii.
Floor fillets: Design floor fillets smaller than corner fillets to allow the same tool to clear material from the interior.
Undercuts: Always design undercuts to standard sizes and away from corners so they are accessible by the cutting tool.
Tapped/threaded hole depth: Provide tool clearance slightly beyond the tapped hole depth to ensure complete threads.
Complexity: Keep the number of small cuts to a minimum to reduce CNC machining costs; only design in the necessary features to balance function with aesthetic.
| Image | Finishing Service | Material Available | Remarks |
|---|---|---|---|
|

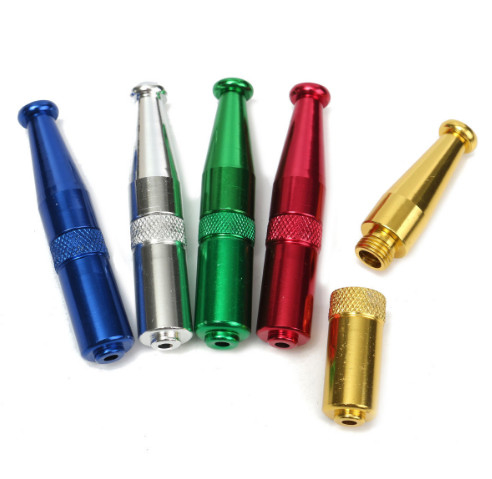

Anodizing | Aluminum, titanium | Anodizing helps to resist corrosion, increase surface hardness, improve resistance to wear and dissipate heat. Type 2 anodizing, which allows us to add tints or dyes to your parts to enhance their looks. Type 3 is also available for surfaces that need to be extra hard. |
|
Painting | Either plastic or metal | You can also have a soft-touch paint coating on almost any surface, either plastic or metal. This type of paint gives a matte-finished, non-slip texture that also blocks glare and hides fingerprints. |
|
Color Matching | Either plastic or metal | We use advanced color spectrophotometers to make precise measurements of surface color, tint and reflectance. This helps us to match your color samples, and to ensure that we apply Pantone or other RGB colors exactly to your specifications. |
|
Brand or logo Processing | Either plastic or metal | Pad Printing, Inexpensive and fast, single color at a time silk screen printing, make sophisticated multi-colored images, Laser marking, black or white, CNC machining logo, Clear depth, touchable. |
|
Sanding and Polishing | Either plastic or metal | Sanding and polishing is not just useful to reduce surface roughness also used for painting preparation but also to create the final surface effect. |
|
Blasting | Aluminum, titanium or steel | Spray some type of abrasive media onto the workpiece, used to clean and de-burr parts, while preparing them both mechanically and chemically for later surface finishes. Blasting also imparts unique textures, frosting, pebbling, etc. |
|
Brushing | All metal | We can provide brushed and satin surface on metal. |
|
Powder Coating | All metal | This is a process where powdered paint is sprayed onto parts that are then baked in an oven. This creates a strong, wear-and corrosion-resistant layer that is more durable than standard painting methods. A wide variety of colors are available to create the desired aesthetic. |
