| Brand Name: | Vigorous |
| Moq: | 1 Piece |
| Price: | Negotiable |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 500–2000 pcs/month |

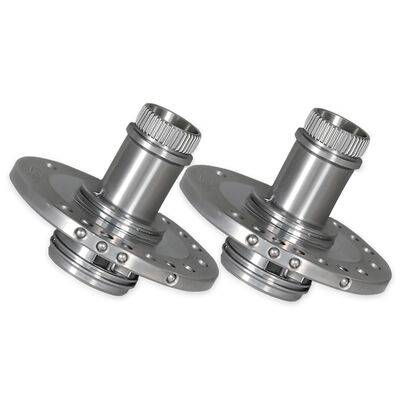

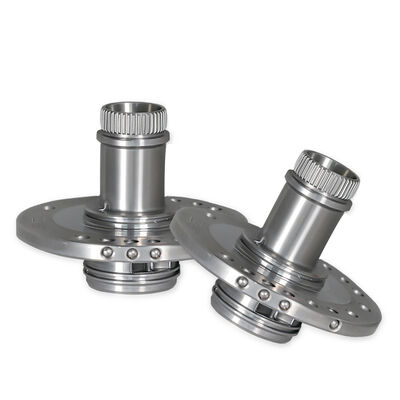

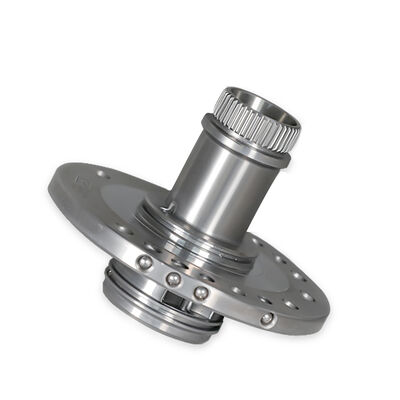

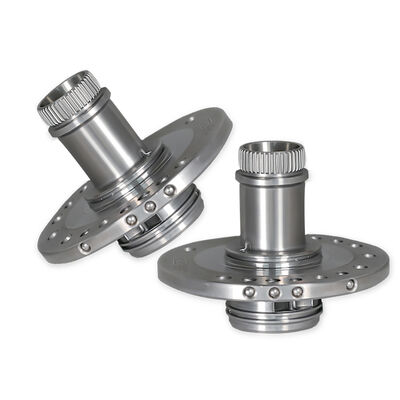

CNC Turned & Milled Metal Hubs | Custom Industrial Components
This precision metal hub combines a flanged body, cylindrical shaft, knurled section, mounting holes and precision-machined grooves.
Material selection is critical for this type of component. Depending on the application, we can manufacture the part from stainless steel, aluminum, alloy steel, brass, titanium and other engineering materials to achieve the required strength, wear resistance, corrosion resistance and weight.
Our CNC turning and milling processes provide accurate control of critical diameters, concentricity, holes, grooves and knurled surfaces.
| Item | Estimated / Typical Specification |
|---|---|
| Product Type | CNC Machined Metal Hub |
| Manufacturing Process | CNC Turning + Milling |
| Overall Diameter | Approx. 100–160 mm |
| Overall Height | Approx. 70–120 mm |
| Shaft Diameter | Approx. 30–50 mm |
| Flange Thickness | Approx. 8–15 mm |
| Mounting Holes | Customized |
| Knurled Diameter | Approx. 35–55 mm |
| Machining Tolerance | Up to ±0.005 mm* |
| Surface Roughness | Up to Ra 0.4 μm* |
| Production | Prototype / Low Volume / Mass Production |
Dimensions shown are estimated from the product image. Final dimensions and tolerances are manufactured according to customer drawings.
Different materials can be selected according to the working environment and performance requirements.
| Material | Typical Advantages | Common Applications |
|---|---|---|
| Stainless Steel 304 / 316 | Corrosion resistance, durability | Machinery, food equipment |
| Aluminum 6061 / 7075 | Lightweight, high strength-to-weight ratio | Automation, equipment |
| Alloy Steel 4140 / 42CrMo4 | High strength and wear resistance | Heavy-duty components |
| Brass C360 / H62 | Good machinability, corrosion resistance | Mechanical components |
| Titanium Grade 2 / 5 | Lightweight, high strength, corrosion resistance | High-performance applications |
| Engineering Plastics | Lightweight, low friction | Special mechanical applications |
Other materials are available according to customer requirements.
The component can be manufactured through a combination of:
CNC Turning → CNC Milling → Drilling → Threading / Grooving → Knurling → Deburring → Surface Finishing → Inspection
This process allows us to maintain consistent dimensions and reliable assembly performance for customized components.
Available finishing options include:
Polishing · Brushing · Passivation · Anodizing · Hard Anodizing · Plating · Electroless Nickel Plating · Black Oxide
The finishing process can be selected according to the material and application requirements.
Multiple metal and engineering material options
Precision CNC turning and milling
Complex grooves, holes and knurled features
Custom dimensions according to drawings
Prototype to mass production
Dimensional inspection available
Surface treatment solutions available
Stainless steel is suitable when corrosion resistance and durability are important. Aluminum is preferred when lightweight construction is required, while alloy steel is suitable for higher-strength applications.
Yes. We can machine 304, 316 and other stainless steel grades according to your application and drawing requirements.
Yes. The outer diameter, shaft diameter, flange dimensions, hole pattern, grooves and knurled features can all be customized.
We can machine aluminum, stainless steel, alloy steel, brass, copper, titanium and engineering plastics, as well as other customer-specified materials.
Yes. We can provide polishing, passivation, anodizing, hard anodizing, plating, electroless nickel plating, black oxide and other finishing options.
