| Brand Name: | VIGOROUS |
| Moq: | 1 Piece |
| Price: | Negotiable |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 500–2000 pcs/month |
1. Basic Product Information
| Item | Typical Specification |
|---|---|
| Machining | 3 / 4 / 5‑Axis CNC Milling |
| Material | 6061‑T6, 7075‑T6 Solid Aluminum Billet |
| Size Range | Customized per drawing |
| Tolerance | Up to ±0.02 mm* |
| Surface Roughness | Ra 0.8‑1.6 μm* |
| Surface Finishing | Natural Milled Texture, Anodizing, Hard Anodizing, Sandblasting |
| Production | Prototype / Low Volume / Mass Production |
| Inspection | Dimensional & CMM Inspection Available |
2. Material Specification(Focus)
| Item | Specification |
|---|---|
| Available Material | 6061‑T6 Aluminum Alloy / 7075‑T6 Aluminum Alloy |
| 6061‑T6 Feature | Good toughness, anti‑corrosion, cost‑effective; ideal for street & daily modified motorcycles |
| 7075‑T6 Feature | High tensile strength & hardness, superior rigidity; preferred for racing, high‑performance motorbike projects |
| Density | 2.70 g/cm³ |
| Raw Material | Solid aluminum billet, no casting, no welding |
3. Manufacturing & Processing Technology(Focus)
| Item | Specification |
|---|---|
| Machining Method | Full CNC 3‑axis / 5‑axis milling from solid aluminum block |

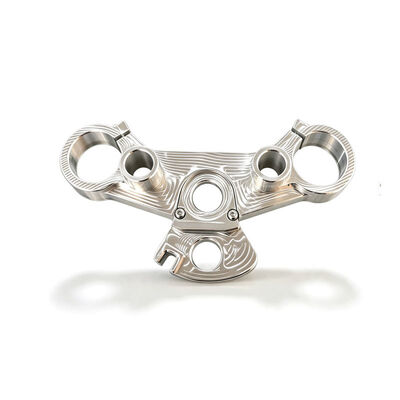

| Process Description | Complete rough milling & finish milling. Visible CNC milling tool marks reserved on surface, showing mechanical texture. FEA‑optimized hollow‑out structure for weight reduction without sacrificing structural stiffness. |
| Machining Tolerance | ±0.02 mm for key mounting holes & clamping slots |
| Surface Roughness | Ra 0.8‑1.6μm for critical fitting surfaces |
| Clamping Structure | Split open‑type clamp slots, matched with high‑strength 12.9 grade bolts; reliable locking for front fork tubes |
| Surface Finishing Options | Natural finish (retain original milling texture), clear anodizing, hard anodizing, black anodizing, sand‑blasting & anodizing |
| Quality Inspection | Dimensional inspection, CMM measurement, visual check for surface defects |
4. Technical Parameters
| Item | Typical Specification |
|---|---|
| Fork Tube Diameter | Customized per customer drawing |
| Steering Stem Bore | Customized per customer drawing |
| Handlebar Mount Position | Customizable |
| Weight | Depends on drawing & material; hollow‑out design reduces weight by 20‑35% |
| Production Mode | Prototype / Small‑batch / Mass production |
5. Product Advantages
6. Application Scenarios
7. Packaging & Lead Time
| Item | Specification |
|---|---|
| Packaging | Anti‑scratch foam + carton box; custom packaging acceptable |
| Lead Time | Prototype: 7‑12 working days; Mass production: 15‑25 working days |
8. Custom Service
Note: Actual dimension, weight and performance depend on drawings, material selection and customer requirements.
FAQ
Why use turn-mill machining for this shaft?
Turn-mill composite machining finishes step OD, thread and keyway in one setup, ensuring strict 0.02mm concentricity and reducing positioning error.
What materials can you machine?
Aluminum, stainless steel, alloy steel, brass, copper, titanium and engineering plastics. Custom materials supported.
What is your max machining size?
Capacity depends on part geometry. Send your 2D drawing or 3D CAD for evaluation.
Can you do surface treatments?
Yes, we offer polishing, passivation, anodizing, plating, powder coating and other custom finishes.
Can you produce from customer drawings?
Yes. Custom CNC service from 2D drawings & 3D files, covering prototype, small-batch and mass production.
