6061 Aluminum 5 Axis CNC Machining Parts Perforated Tray Part

Basic Properties
Place of Origin: China
Brand Name: Vigorous
Trading Properties
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: T/T,L/C
Supply Ability: 500–2000 pcs/month
Tags

5 axis cnc parts

5 axis machined parts

5 axis cnc machine parts
Product Summary
Custom 5-axis CNC machined 6061 aluminum perforated tray with ISO9001:2015 & TUV certification. Precision HERMLE C42U machining ensures dimensional stability for complex geometries. Available with anodizing/polishing finishes. 7-15 day lead time for automotive, aerospace, electronics applications.

Product Details

Highlight:

aluminum 5 axis cnc machining parts

,

6061 5 axis machined parts

,

6061 5 axis cnc machining parts
Machining Process: 5-Axis CNC Milling
Material: A6061 Aluminum Alloy
Main Overall Size: Approx. 258.5 * 205 Mm
Maximum Overall Length: Approx. 264.5 Mm
Inner Opening: Approx. 193 * 199 Mm
Structural Depth: Approx. 28.3 Mm
Product Description

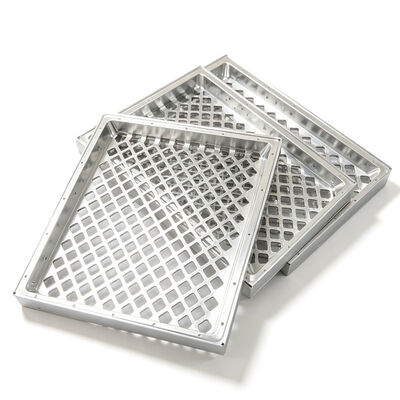

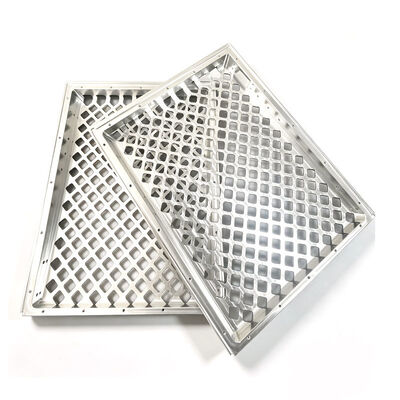

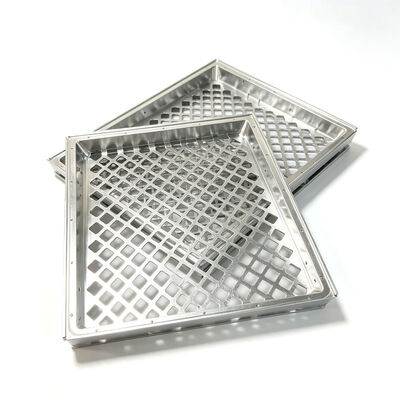

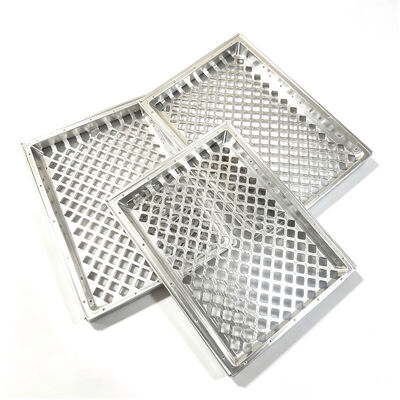

Custom 5-Axis CNC Machined 6061 Aluminum Perforated Tray Part

This custom 6061 aluminum perforated tray is manufactured directly from the customer's 2D engineering drawing and 3D CAD requirements using precision 5-axis CNC machining. The component features a large lightweight frame, dense repeated openings, thin structural sections, multiple mounting holes and threaded holes.

Product Specifications
Item Specification
Product Type Precision CNC Machined Perforated Tray
Machining Process 5-Axis CNC Milling
Machine German HERMLE C42U
Material A6061 Aluminum Alloy
Main Overall Size Approx. 258.5 × 205 mm
Maximum Overall Length Approx. 264.5 mm
Inner Opening Approx. 193 × 199 mm
Structural Depth Approx. 28.3 mm
Hole Pattern Multiple Repeated Precision Openings
Threaded Holes M3 / M4
Hole Features Ø2.5 mm / Ø3.3 mm
Surface Roughness According to customer drawing
Dimensional Tolerance According to customer drawing
Quantity on Drawing 2 pcs
Production Prototype / Low Volume / Mass Production
5-Axis CNC Machining Advantages
Feature Our Capability
Complex Geometry Accurate machining of the frame, inclined surfaces and repeated opening pattern
Multi-Angle Machining 5-axis positioning reduces the need for multiple fixtures
Dimensional Stability Improved consistency across critical mounting and structural features
Dense Opening Pattern Efficient machining of numerous repeated openings with controlled positioning
Reduced Setups Fewer repositioning operations help minimize accumulated fixture errors
Thin Structural Areas Controlled machining strategy helps reduce deformation during processing
OEM Customization Manufactured directly according to customer drawings and CAD data
Material – 6061 Aluminum Alloy

The component is manufactured from A6061 aluminum alloy, providing a good combination of lightweight construction, machinability, strength and corrosion resistance.

We also support CNC machining of:

  • Aluminum: 6061, 6061-T6, 6063, 7075
  • Stainless Steel: 304, 316, 17-4PH
  • Alloy Steel: 4140, 4130, 42CrMo4
  • Brass: C360, H62
  • Copper Alloys
  • Titanium: Grade 2, Grade 5
  • Engineering Plastics: POM, PA6, PA66, ABS, Nylon
Surface Finishing

Available surface treatments include:

  • Anodizing · Hard Anodizing · Polishing · Brushing · Powder Coating · Electroless Nickel Plating · Electroplating · Passivation

For aluminum components, we can also provide customized anodizing colors and surface finishes according to application requirements.

Typical Applications
  • Automation Equipment
  • Packaging Machinery
  • Robotics
  • Industrial Machinery
  • Semiconductor Equipment
  • Inspection Equipment
  • Food Processing Equipment
  • Medical Equipment
  • Custom OEM Machinery
Frequently Asked Questions
Why is 5-axis CNC machining suitable for this aluminum tray?

The component contains a large number of repeated openings, mounting holes, angled structural features and relatively thin sections. 5-axis machining provides better access to multiple surfaces while reducing setups and positioning errors.

Can you manufacture this part according to our drawings?

Yes. We manufacture custom CNC components directly from 2D engineering drawings, 3D CAD models and customer specifications.

Can you machine 6061 aluminum?

Yes. 6061 and 6061-T6 aluminum are commonly machined materials in our CNC production. Other aluminum alloys are also available.

Can you handle complex perforated or lightweight structures?

Yes. Our 5-axis machining capability is suitable for complex frames, perforated plates, lightweight structures, brackets, housings and other non-standard precision components.

Can you provide surface treatment?

Yes. We can arrange anodizing, hard anodizing, polishing, brushing, powder coating, plating and other customized surface treatments.

Do you support prototype and small-batch production?

Yes. We support prototype, low-volume and mass production, with production quantities based on customer requirements.

Request a CNC Machining Quote

Send us your 2D drawing or 3D CAD model for engineering evaluation and quotation. We can review the material, machining process, tolerances, surface treatment, quantity and delivery requirements before production.

Custom Drawing → Engineering Review → 5-Axis CNC Machining → Inspection → Surface Treatment → Final Delivery
