Multi Axis Machined CNC Turning Milling Parts Complex Aluminum Mechanical Actuator

Basic Properties
Place of Origin: China
Brand Name: Vigorous
Trading Properties
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: T/T,L/C
Supply Ability: 500–2000 pcs/month
Tags

cnc turning milling part

high volume turned milled components

turned and milled parts
Product Summary
Custom CNC Milling Complex Aluminum Mechanical Actuator This complex automation actuator is manufactured by multi‑axis CNC turning‑milling combined machining. It features hollow cut‑out structures, multi‑direction mounting bosses, distributed screw holes and assembled fitting interfaces. Advanced ...

Product Details

Highlight:

Multi Axis CNC Turning Milling Parts

,

CNC Turning Milling Parts Complex

,

Aluminum Mechanical Actuator
Dimension: Customized
Delivery: DHL, UPS, FedEx, TNT, Etc.
Quantity: Custom Order (1 Piece To Mass Production)
Shipping Terms: FOB, CIF, EXW
Aluminum Alloy: 2024/5052/6061/6063/6082/7075/etc
Surface Finish: Anodized, Sandblasting, Polish
Core Components: Other
Materials Avaliable: Stainless Steel Aluminum Metals Copper
Finish: Smooth, High Precision
Design Software: CAD UG CAM,STP,Solidworks And So On
Advantage: High Precision, Fast Delivery, Etc.
Tolerance: ±0.01 Mm
Product Description
Custom CNC Milling Complex Aluminum Mechanical Actuator

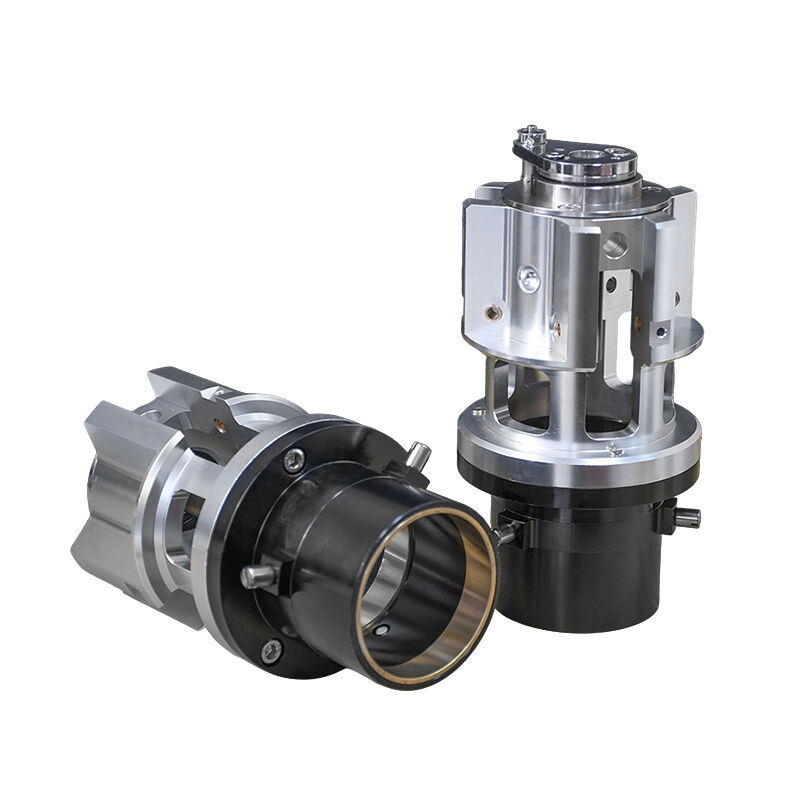

This complex automation actuator is manufactured by multi‑axis CNC turning‑milling combined machining. It features hollow cut‑out structures, multi‑direction mounting bosses, distributed screw holes and assembled fitting interfaces. Advanced multi‑axis machining technology ensures high positional accuracy for all features, perfect assembly tolerance and stable mechanical movement performance for automation equipment.

Processing Difficulty & Solution

Difficulty:Complex hollow cavity & multiple protruding bosses, mixed milling‑turning features. Risk of deformation during clamping, poor positional accuracy of cross‑direction holes.

Solution: Custom anti‑deformation fixture, multi‑axis one‑clamp complete machining. Optimize cutting parameters to reduce material stress. Full 3D coordinate inspection for hole position and flatness to guarantee assembly accuracy.

Item Specification
Main Body Material Aluminum 6061‑T6 (main), support Brass, 304/316 Stainless Steel, Carbon Steel, POM
Overall Outer Diameter 110 mm
Total Height 160 mm
Key Feature Hollow cut‑out, multi‑boss structure, multi‑direction mounting holes
Tolerance ±0.012‑0.03 mm
Core Process 5‑Axis CNC Milling & Turning Compound Machining, Tapping, Deburring
Surface Finish Brushed machined aluminum surface
Custom Method Custom per customer CAD drawings or samples

part from complex aluminum multi‑axis machining, we support diversified material options. We are capable of manufacturing similar complex structural parts in brass, stainless steel, carbon steel and engineering plastic POM. Whether you need automation actuator parts, hollow structural components or complicated assembled mechanical housings, we can produce according to your drawings.

Our full‑range service includes drawing feasibility review, raw material sourcing, multi‑axis CNC machining, dimensional inspection and final packaging. Original mill material certificates can be provided upon request.

FAQ

Q1: Can you produce this complex actuator strictly from my CAD drawing?

A: Yes. Custom manufacturing is available. Please share your drawing for technical evaluation and quotation.

Q2: What alternative materials can you use other than 6061‑T6 aluminum?

A: We support brass, 304/316 stainless steel, carbon steel, POM and other industrial materials for complex custom parts.

Q3: What precision can you reach for such hollow complex mechanical parts?

A: Standard tolerance ±0.03 mm, tight tolerance down to ±0.012 mm can be achieved with 5‑axis compound machining.

Q4: How do you prevent workpiece deformation during machining complex hollow structures?

A: We adopt custom anti‑deformation fixtures and optimized cutting parameters to release internal stress, plus full‑inspection after processing.

Q5: What is your MOQ for these custom multi‑axis machined actuator components?

A: Prototype small orders are acceptable. MOQ varies with part complexity, please contact us for detailed offer.
