| Brand Name: | Vigorous |
| Moq: | 1 Piece |
| Price: | Negotiable |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 500–2000 pcs/month |

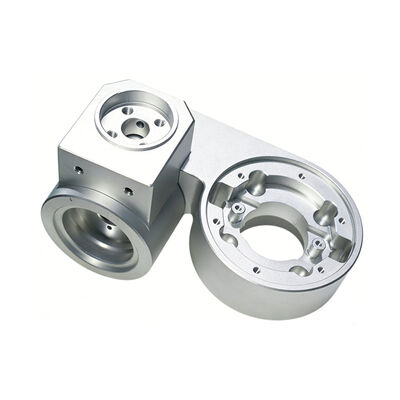

This robot joint housing set is completed by 5‑axis CNC turning‑milling composite machining. It integrates square boss, cylindrical cavity, multi‑direction counter‑bore holes, inner step grooves and multiple threaded mounting holes. Multiple intersecting features cannot be finished by ordinary 3‑axis machine. Multi‑axis one‑clamping machining guarantees positional accuracy among different features and excellent assembly match for robot joint modules.
Processing Features:Hybrid structure combining square block and cylindrical cavity; multi‑angle intersecting holes & inner stepped grooves. Multiple working surfaces require multi‑angle continuous milling, repeated fixture re‑clamping is avoided.
Part Advantages:High coaxiality & hole‑position accuracy, consistent assembly tolerance, compact structure, stable running performance, good surface quality, suitable for robot joint and automation rotary module.
| Item | Specification |
|---|---|
| Main Body Material | Aluminum 6061‑T6 (main), support Stainless Steel, Brass, Carbon Steel, POM |
| Overall Outer Width | 132 mm |
| Overall Height | 115 mm |
| Key Feature | Mixed square‑cylinder structure, multi‑direction holes, inner stepped cavities |
| Tolerance | ±0.015‑0.03 mm |
| Core Process | 5‑Axis CNC Turn‑Milling Compound Machining, Tapping, Counter‑boring, Deburring |
| Surface Finish | Fine machined aluminum finish |
| Custom Method | Customized according to customer CAD drawings or samples |
Apart from 5‑axis complex aluminum housing parts, we support diversified material processing. We can manufacture similar multi‑feature mechanical components in stainless steel, brass, carbon steel and engineering plastic POM. Whether you need robot joint housings, rotary module shells or complex mixed‑structure automation parts, we can produce strictly based on your drawings or samples.
We provide one‑stop service including drawing review, raw material procurement, multi‑axis CNC machining, full‑dimension inspection and finished‑product packaging. Original mill material certificates can be provided upon request.
