| Brand Name: | Vigorous |
| Moq: | 1 Piece |
| Price: | Negotiable |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 500–2000 pcs/month |
| Item | Specification |
|---|---|

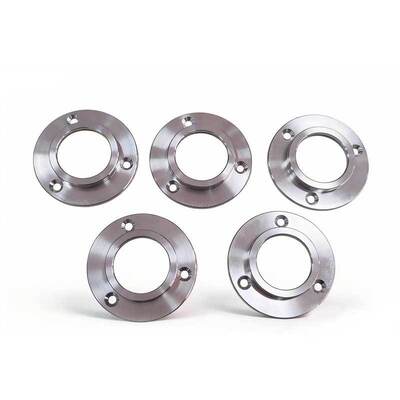

| Product Type | Precision CNC Turn-Mill Flange Component |
| Machining Process | CNC Turn-Milling |
| Material | AISI 304 Stainless Steel |
| Quantity | 12 Pieces |
| Maximum Outer Diameter | Approx. Ø69 mm |
| Flange Diameter | Approx. Ø55 mm |
| Main Bore | Approx. Ø40 mm |
| Internal Bore Features | Ø35 mm / Ø46 mm |
| Mounting Holes | 3 * Ø5.1 mm Through Holes |
| Countersink | Ø9 * 90° |
| Hole Arrangement | 3 Equally Spaced Holes |
| General Tolerance | According to Customer Drawing |
| Production | Prototype / Low Volume / Mass Production |
| Feature | Our Capability |
|---|---|
| Turning Operations | External diameters, internal bores and stepped profiles |
| Milling Operations | Off-axis mounting holes and countersinks |
| One-Setup Machining | Multiple turning and milling features in an integrated process |
| Hole Positioning | Accurate 3-hole pattern according to drawing |
| Countersink Machining | Ø9 * 90° countersinks |
| Reduced Setups | Less secondary clamping and repositioning |
| Feature Alignment | Improved relationship between turned and milled features |
| Batch Consistency | Stable machining process for repeat production |
| Stainless Steel Machining | Experienced processing of 304 stainless steel |
