High‑Precision 5‑Axis Custom Machined Robotic Structural Component for Automation Systems

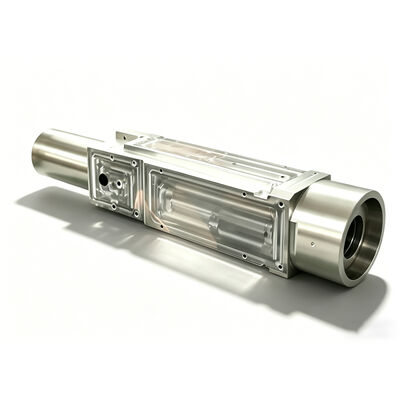

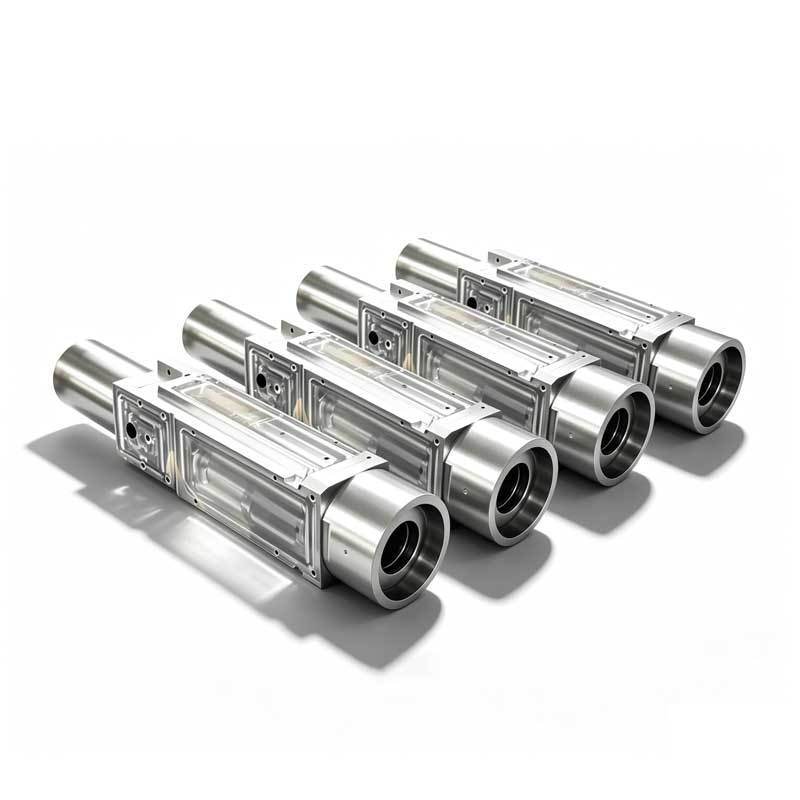

This robot joint housing is precision‑machined from 6061‑T6 aluminum alloy, a premium structural material widely adopted for robotic and automation equipment. Benefits of the material: high strength‑to‑weight ratio, low density, excellent thermal conductivity and superior machinability. It effectively reduces overall equipment weight while maintaining rigid structural performance, well‑suited for high‑speed moving robot assemblies.
Machining Features: Complex bent hollow U‑shape structure, multi‑face mounting holes, counter‑bore holes and inner cavity features. It requires continuous multi‑angle 5‑axis milling to form curved surfaces and multi‑directional hole positions within constrained space.
Part Advantages: Compact lightweight structure with high rigidity, high‑precision hole positioning, smooth curved surfaces, great oxidation resistance, delivering stable operation during robot joint motion.
| Item | Specification |
|---|---|
| Main Material | 6061‑T6 Aluminum (main body); Compatible with Stainless Steel, Brass, 7075‑T6 Aluminum, PEEK |
| Overall Outer Width | 242 mm |
| Overall Height | 116 mm |
| Key Features | Elongated hollow robot joint housing, multi‑face threaded mounting ports, deep internal cavity & stepped bore structure |
| Machining Tolerance | ±0.012‑0.025 mm |
| Core Processes | 5‑Axis CNC Milling, Precision Turning, Thread Tapping, Vibratory Deburring |
| Surface Finish | Fine bead‑blasted & bright machined aluminum surface |
| Customization Method | Custom manufactured according to customer‑supplied CAD files or physical reference samples |
We produce this robotic housing from solid billet stock rather than cast blanks. 6061‑T6 aluminum offers outstanding machinability; however, its thin‑wall curved hollow structure carries deformation risks during heavy‑stock‑removal machining. We eliminate this risk by applying optimized custom fixtures, carefully tuned cutting feeds & speeds, and dedicated 5‑axis tool‑path programming. Multi‑axis machining completes multi‑direction holes, counter‑bores and contoured inner cavities with minimal re‑clamping, preserving positional accuracy across all mating features. Full dimensional inspection is performed post‑machining to guarantee tolerance compliance. We also support alternate raw materials including stainless steel, brass, 7075‑T6 aluminum and engineering plastic PEEK for scenarios demanding higher strength, wear resistance or corrosion resistance.
Beyond 6061‑T6 aluminum robot housings, we offer diversified material options for complex structural components. We can fabricate similar complex‑geometry parts in stainless steel, brass, 7075‑T6 aluminum and engineering‑grade PEEK. Whether you need robot joint housings, automation equipment frames or special bent mechanical enclosures, all parts are strictly manufactured per your drawings or samples.
We deliver one‑stop services: drawing review, raw material sourcing, multi‑axis CNC machining, full dimension inspection and finished‑product packaging. Original mill material certificates are available upon request.
Q1: Can you produce this robot joint housing from my CAD drawings?
A: Yes, custom manufacturing is available. Please send us your CAD files for technical evaluation and quotation.
Q2: What alternative materials are available besides 6061‑T6 aluminum?
A: We support stainless steel, brass, 7075‑T6 aluminum, PEEK and other industrial‑grade materials for custom structural components.
Q3: What accuracy can you achieve for multi‑directional holes on this bent housing?
A: Standard tolerance is ±0.025 mm. Strict tolerance down to ±0.012 mm can be achieved via 5‑axis CNC machining.
Q4: Will thin‑wall curved aluminum housing deform during CNC machining?
A: We use optimized fixtures and cutting parameters to control machining‑induced deformation. Every finished part goes through complete dimensional inspection.
Q5: What is your order requirement for custom CNC robot structural parts?
A: Small‑batch prototype orders are acceptable. MOQ varies according to part complexity. Please contact us for detailed quotation.
