CNC Copper Parts Turn Mill Brass Complex Bushing Assembly Inner Outer Special Grooves

Basic Properties
Place of Origin: China
Brand Name: Vigorous
Trading Properties
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: T/T,L/C
Supply Ability: 500–2000 pcs/month
Tags

precision cnc machined components

mechanical spare parts

brass machined parts
Product Summary
Precision CNC turn-mill brass complex bushing assembly with inner-outer special grooves, spiral oil grooves, and multi-step structures. Features high electrical/thermal conductivity, heat resistance up to 1085°C, and 100% inspection. Custom orders with 7-15 day lead time.

Product Details

Highlight:

Turn Mill CNC Copper Parts

,

H62 CNC Copper Parts

,

Turn Mill Brass Complex Bushing
Material: Brass C360 / H62
Surface Roughness: Ra 3.2 μm
Tolerance: According To Customer Drawing
Heat Resistance: Up To 1085°C
Conductivity: High Electrical And Thermal Conductivity
Machining Process: CNC Turn-Mill Composite Machining
Product Description

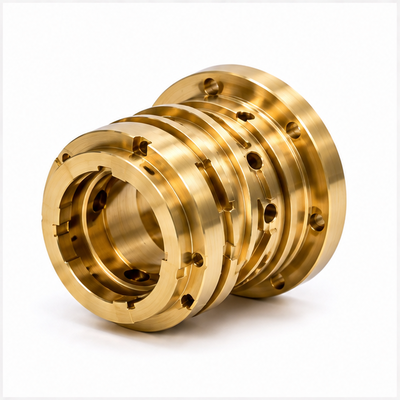

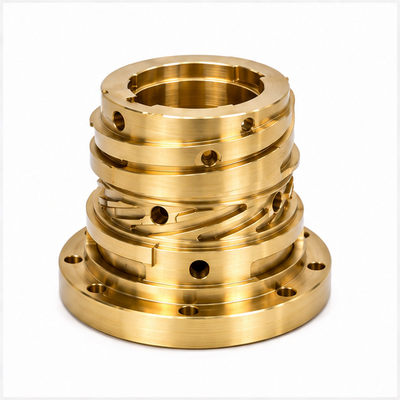

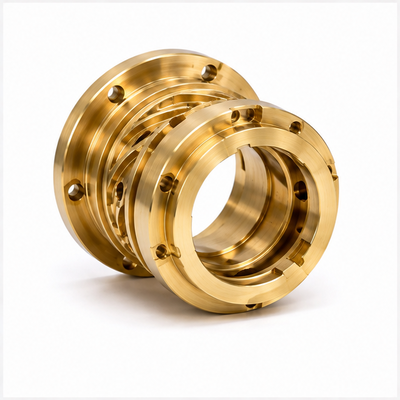

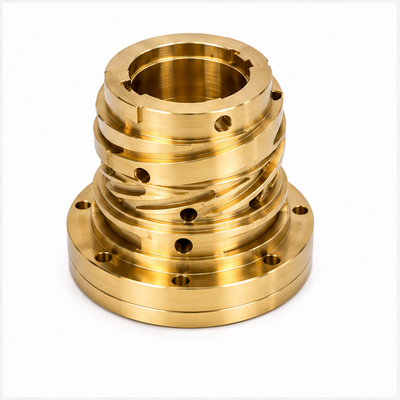

CNC Turn Mill Brass Complex Bushing Assembly Inner Outer Special Grooves

Custom CNC Turn Mill Machined Brass Complex Bushing Assembly

This precision brass complex bushing assembly is manufactured using CNC turn‑mill composite machining, featuring inner‑outer special‑shaped grooves, spiral oil grooves, radial angled oil holes and multiple inner‑outer step structures with tight drawing‑driven tolerance requirements.

CNC turn‑mill composite machining enables stable one‑clamp forming for complex rotary components, reducing repeated clamping errors and maintaining consistent dimensional accuracy across all critical groove, oil hole and multi‑step features.

It is suitable for hydraulic equipment, transmission machinery, packaging machinery, industrial machinery and other custom OEM applications.

Product Specifications

Final dimensions and tolerances are manufactured according to the approved customer drawing.

Item Specification
Product Type Precision CNC Turn‑Mill Brass Complex Bushing Assembly
Machining Process CNC Turn‑Mill Composite Machining
Material Brass C360 / H62
Key Features Inner‑outer special grooves, spiral oil grooves, radial angled oil holes, inner‑outer multi‑steps
Surface Roughness Ra 3.2 μm
Tolerance According to customer drawing
Production Prototype / Low Volume / Mass Production
CNC Turn Mill Machining Advantages
Complex Bushing Machining
Efficient high‑precision processing for brass complex bushing assembly
Multi‑Groove & Oil Hole Geometry
Accurate forming for special grooves spiral oil grooves and radial angled oil holes
Multi‑Step Profile Machining
Precise machining of inner and outer multi‑step structures
Fewer Setups
Reduced repositioning and fixture‑related errors
Dimensional Consistency
Stable tolerance for grooves oil holes and critical step dimensions
Surface Quality
Fine surface finish for friction fitting and lubrication mating surfaces
Available Materials

We provide CNC machining for a wide range of engineering materials:

Aluminum: 6061, 6061‑T6, 6063, 7075
Stainless Steel: 304, 316, 17‑4PH
Alloy Steel: 4140, 4130, 42CrMo4
Brass: C360, H62
Copper: Copper Alloys
Titanium: Grade 2, Grade 5
Plastics: POM, PA6, PA66, ABS, Nylon

Other materials are available according to customer requirements.

Surface Finishing
  • Anodizing
  • Hard Anodizing
  • Polishing
  • Brushing
  • Passivation
  • Electroless Nickel Plating
  • Electroplating
  • Powder Coating
Typical Applications
  • Hydraulic Equipment
  • Transmission Machinery
  • Packaging Machinery
  • Industrial Machinery
  • Automation Equipment
  • Food Processing Equipment
  • Fluid Power Components
  • Custom OEM Machinery
Frequently Asked Questions
Why is CNC turn‑mill composite machining suitable for this bushing assembly component?
The component is complex brass bushing assembly with inner‑outer special grooves, spiral oil grooves, radial angled oil holes and multi‑step profiles. CNC turn‑mill composite delivers high accuracy for mixed rotary and milled features with fewer set‑ups.
What materials can you machine?
We can machine aluminum, stainless steel, alloy steel, brass, copper, titanium and engineering plastics. Custom materials are also available according to customer specifications.
What is the maximum size you can machine?
The exact machining capacity depends on the machine and component geometry. Please send us your 2D drawing or 3D CAD model for an engineering evaluation.
Can you provide surface treatment?
Yes. We can arrange polishing, passivation, plating, powder coating and other customized surface treatments.
Can you manufacture according to our drawings?
Yes. We provide custom CNC machining from 2D drawings and 3D CAD files, including prototypes, low‑volume production and mass production.
