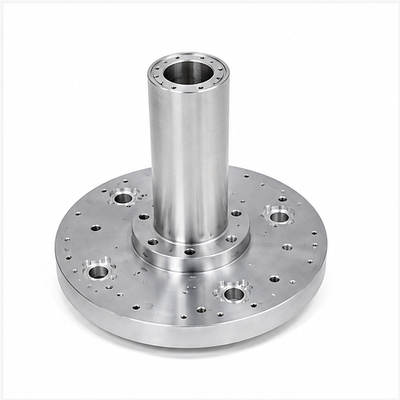

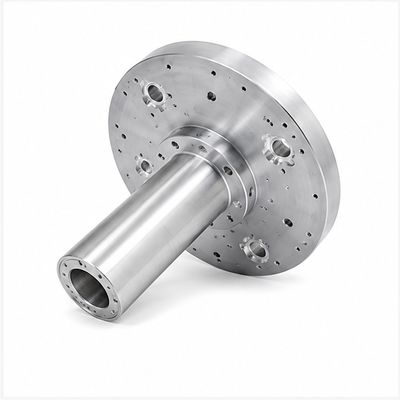

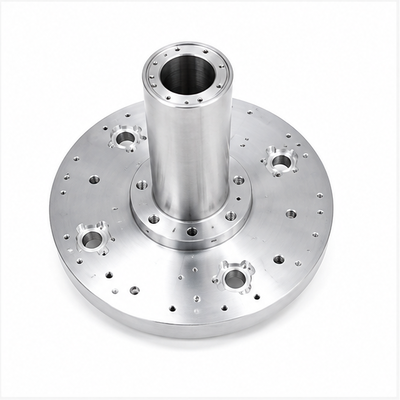

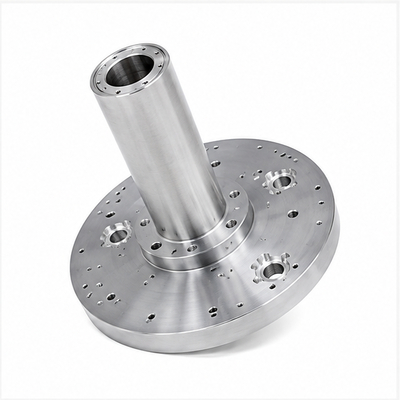

Cnc Turning Milling Part Aluminum Flange Shaft Component Multi Mounting Holes

Basic Properties
Place of Origin: China
Brand Name: Vigorous
Trading Properties
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: T/T,L/C
Supply Ability: 500–2000 pcs/month
Tags

stainless steel spare parts

turned and milled parts

cnc aluminum parts
Product Summary
Precision OKUMA turn-mill machined aluminum flange shaft component with integrated flange-shaft structure, distributed multi-mounting holes, and multi-step inner bores. Features stable one-clamp forming for dimensional consistency, suitable for automation, robotics, and industrial machinery. Customizable materials and surface finishes available.

Product Details

Highlight:

Multi Holes Cnc Turning Milling Part

,

6061-T6 Cnc Turning Milling Part

,

Aluminum Flange Shaft Component
Material: 6061 / 6061-T6 Aluminum Alloy
Surface Roughness: Ra 3.2 μm
Tolerance: According To Customer Drawing
Machining Process: OKUMA Turn-Mill Composite Machining
Key Features: Integrated Flange-shaft Structure, Distributed Multi-mounting Holes, Multi-step Inner Bores
Production: Prototype / Low Volume / Mass Production
Product Description
OKUMA Turn Mill Machined Aluminum Flange Shaft Component Multi Mounting Holes
Product Overview

This precision aluminum flange shaft component is manufactured on OKUMA turn-mill composite machines, featuring an integrated flange-shaft structure, distributed multi-mounting holes, multi-step inner bores, and tight drawing-driven tolerance requirements.

OKUMA turn-mill composite machining enables stable one-clamp forming for complex rotary parts, reducing repeated clamping errors and maintaining consistent dimensional accuracy for shaft, flange, and distributed hole features.

It is suitable for automation equipment, packaging machinery, robotics, industrial machinery, and other custom OEM applications.

Product Specifications

Final dimensions and tolerances are manufactured according to the approved customer drawing.

Item Specification
Product Type Precision OKUMA Turn-Mill Aluminum Flange Shaft Component
Machining Process OKUMA Turn-Mill Composite Machining
Material 6061 / 6061-T6 Aluminum Alloy
Key Features Integrated flange-shaft structure, distributed multi-mounting holes, multi-step inner bores
Surface Roughness Ra 3.2 μm
Tolerance According to customer drawing
Production Prototype / Low Volume / Mass Production
OKUMA Turn Mill Machining Advantages
Feature Our Capability
Complex Flange-Shaft Machining Efficient high-precision processing for integrated flange shaft parts
Multi-Hole & Multi-Step Geometry Accurate machining for distributed mounting holes and multi-step bore profiles
Fewer Setups Reduced repositioning and fixture-related errors
Dimensional Consistency Stable tolerance for shaft flange and hole position dimensions
Surface Quality Fine surface finish for mating and assembly working surfaces
Available Materials

We provide CNC machining for a wide range of engineering materials:

Material Common Grades
Aluminum 6061, 6061-T6, 6063, 7075
Stainless Steel 304, 316, 17-4PH
Alloy Steel 4140, 4130, 42CrMo4
Brass C360, H62
Copper Copper Alloys
Titanium Grade 2, Grade 5
Plastics POM, PA6, PA66, ABS, Nylon

Other materials are available according to customer requirements.

Surface Finishing

Depending on the application, we can provide:

  • Anodizing
  • Hard Anodizing
  • Polishing
  • Brushing
  • Passivation
  • Electroless Nickel Plating
  • Electroplating
  • Powder Coating
Typical Applications
  • Automation Equipment
  • Packaging Machinery
  • Robotics
  • Industrial Machinery
  • Medical Equipment
  • Food Processing Equipment
  • Automotive Components
  • Custom OEM Machinery
Frequently Asked Questions
Why is OKUMA turn-mill composite machining suitable for this flange shaft component?

The component is an integrated flange-shaft part with distributed mounting holes and multi-step inner bores. OKUMA turn-mill composite delivers high accuracy for combined turning and milling features with fewer set-ups.

What materials can you machine?

We can machine aluminum, stainless steel, alloy steel, brass, copper, titanium and engineering plastics. Custom materials are also available according to customer specifications.

What is the maximum size you can machine?

The exact machining capacity depends on the machine and component geometry. Please send us your 2D drawing or 3D CAD model for an engineering evaluation.

Can you provide surface treatment?

Yes. We can arrange anodizing, hard anodizing, polishing, passivation, plating, powder coating and other customized surface treatments.

Can you manufacture according to our drawings?

Yes. We provide custom CNC machining from 2D drawings and 3D CAD files, including prototypes, low-volume production and mass production.
