OEM / ODM 5 Axis CNC Machining Parts Aluminum Fixture Part ±0.005mm

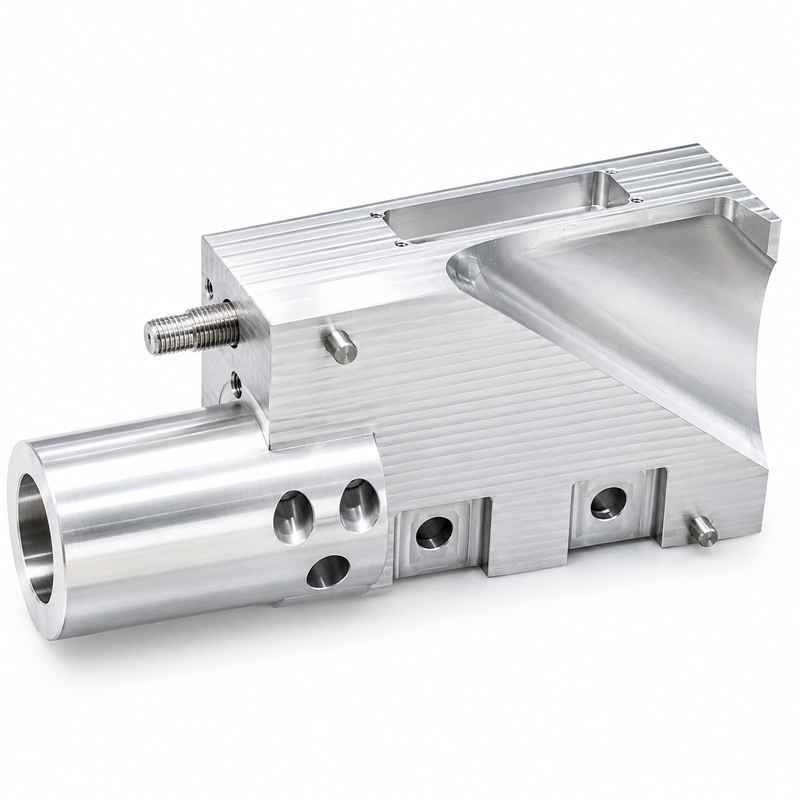

This custom 5-axis CNC machined aluminum block is manufactured through advanced multi-surface milling processes. It achieves exceptional dimensional accuracy with tight tolerances up to ±0.005mm, supporting complex geometries, deep cavities, and angled features. The component features smooth surface finishes, precise drilling operations, and comprehensive chamfer deburring. Made from lightweight, high-strength aluminum, this part is ideal for automation, aerospace, and precision machinery applications. We offer comprehensive OEM & ODM custom fabrication services based on your CAD drawings.

This aluminum assembly workpiece is processed on professional 5-axis CNC equipment, enabling complex angles, deep cavities, and multi-sided contours to be completed in a single clamping operation. The complex pocket machining delivers smooth inner surfaces and sharp, clean edges. All drilled holes maintain accurate positioning and dimensional consistency.

Comprehensive chamfer and deburring treatments ensure safer assembly processes. The aluminum material provides low weight, high mechanical strength, and excellent stability for dynamic precision equipment applications.

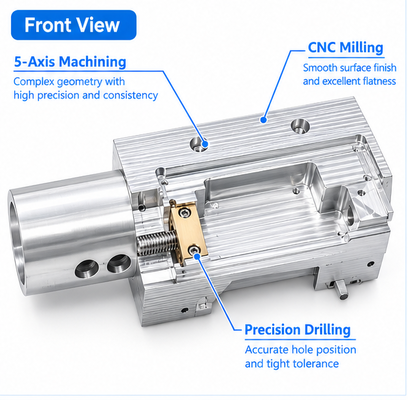

• 5-axis machining for complex geometry, deep cavities and multi-angle features
• Ultra-precise tolerance up to ±0.005mm for reliable fitting

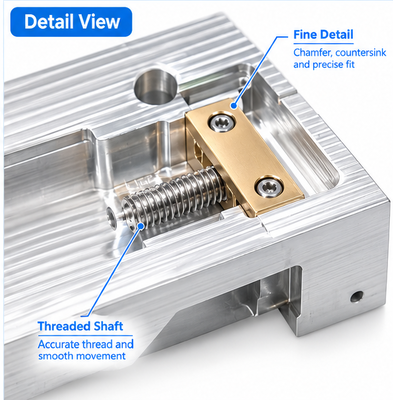

• Complex pocket milling, cylindrical precision drilling and clean chamfer edges

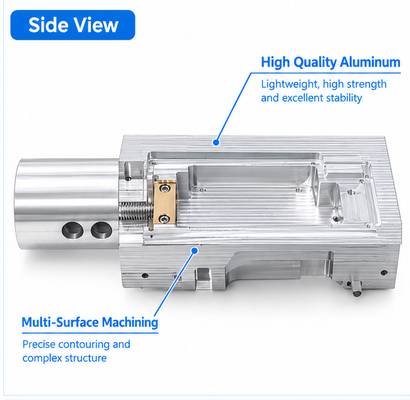

• Premium aluminum alloy: lightweight, high strength and stable performance

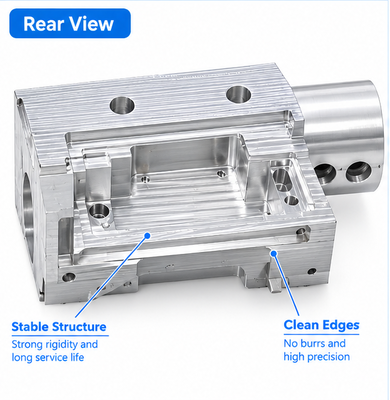

• Smooth uniform surface finish with deburring for easy assembly
• Multi-surface one-setup machining to reduce cumulative positioning error

• 5-axis machining capability to process complicated multi-angle parts that standard 3-axis CNC cannot complete
• Dual quality control: in-process dimension checking plus final full inspection before shipment
• Fully custom manufacturing: produce parts strictly according to your CAD drawings and technical requirements
• Short sample lead time: 3-7 working days for prototype samples
• Rich material options, flexible secondary surface treatments upon request

• Aerospace precision structural components
• Automation & robotic equipment assemblies
• Precision machinery and test fixture parts
• Semiconductor and high-end instrument housings
• Medical equipment mechanical assemblies
