Aluminum Robotics Components Leg Structural Arm Robotic Limb Component

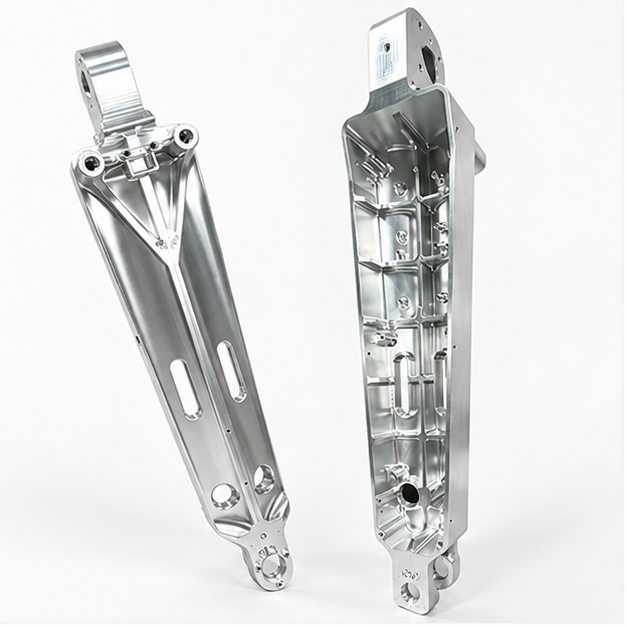

Custom 5-axis CNC machined robot leg structural arm designed for humanoid robot and bipedal robot systems. This high-strength aluminum robotic limb part features a reinforced internal rib-reinforced hollow cavity structure, multi-group precision hinge mounting holes, weight-reduction slots, and complex multi-angle joint mating surfaces.

Produced strictly following customer CAD drawings, it meets strict requirements for load-bearing capacity, bending resistance, assembly positioning accuracy, and lightweight performance for robot leg assemblies. 5-axis CNC machining completes multi-angle milling, cavity milling, boring, drilling, and tapping within a single clamping setup, eliminating accumulated positioning errors caused by repeated fixture re-clamping.

• High Load-Bearing & Lightweight Design - Reinforced internal rib structure delivers excellent bending and impact resistance. High-grade aluminum alloy reduces overall limb weight while maintaining structural stiffness, lowering drive load for biped robot movement.
• High-Precision Hinge Assembly Performance - Single-setup five-axis machining guarantees high positional accuracy and coaxiality for multiple hinge mounting holes. Ensures smooth leg joint movement, eliminates jitter and clearance deviation during robot walking.
• Realize Complex Hollow Rib Cavity Geometry - Supports deep hollow cavity, internal reinforcing ribs, weight-reduction cutouts and multi-angle mating surfaces which cannot be fully processed by conventional 3-axis machines.
• Outstanding Wear & Corrosion Resistance - Optional hard anodizing surface treatment improves surface hardness and wear resistance, adapts to frequent cyclic movement for long-time continuous robot operation.
• Strict Full-Process Quality Control - Critical dimensions, geometric tolerances and mating surfaces are fully inspected by CMM coordinate measuring machine. Strict surface quality check before shipment to guarantee assembly consistency.

Our 5-axis CNC machining centers complete full multi-face machining in one clamping: rough milling, internal rib cavity finish milling, hinge hole boring, drilling, tapping, chamfering and precision deburring. Effectively avoids tolerance drift caused by repeated re-positioning.

We provide full-cycle manufacturing services including prototype trial-run, small-batch verification and large-scale serial production for robotics industry.

• Aluminum 7075 - High tensile strength, preferred material for heavy-load humanoid robot leg structural parts.
• Aluminum 6061 - Great machinability, cost-effective solution for robot prototype and medium-volume orders.
• 316L Stainless Steel - For special working scenarios requiring high corrosion resistance and impact resistance.

Humanoid biped robot leg assembly, humanoid robotic limb, walking robot structural component, collaborative robot support arm, special automation robotic equipment.

We provide full custom manufacturing service based on your drawings or physical samples. Material selection, tolerance level and surface finishing can be fully customized according to your robot project demands from prototype validation to mass production. Send your drawing files for fast quotation.
