| Brand Name: | VIGOROUS |
| Moq: | 1 Piece |
| Price: | Negotiable |
| Payment Terms: | T/T,L/C |
| Supply Ability: | 500–2000 pcs/month |

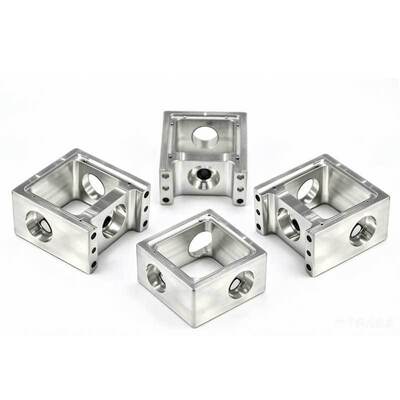

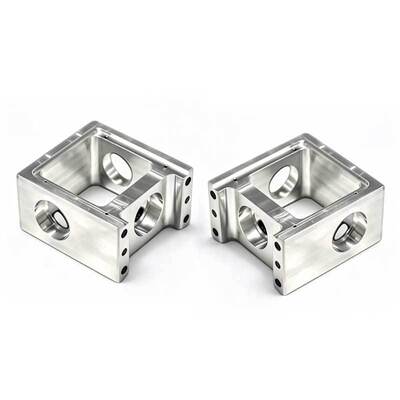

Custom CNC Milled Aluminum Cavity Housing
| Item | Specification |
|---|---|
| Product Type | Precision 5‑Axis CNC Milling Custom Aluminum Cavity Housing Component |
| Manufacturing Process | 5‑axis CNC multi‑task milling, multi‑side one‑setup complete machining |
| Material | 6061‑T6 Aluminum Alloy |
| Max Outer Dimension | 132 mm *124 mm |
| Inner Cavity Size | 86 mm *80 mm |
| Critical Hole Tolerance | Ø42⁺⁰·⁰³ mm / Ø56⁺⁰·⁰³ mm |
| Mounting Structure | Multi‑side mounting bosses with counter‑sunk assembly holes |
| Port Feature | Multi‑directional bored through‑holes, stepped bore seats for mechanical assembly fit |
| Product Weight | 0.92 kg |
| Surface Roughness | Ra 1.2‑Ra 3.2, customizable per customer drawing requirements |
| Machining Description | Single‑setup completes face milling, cavity pocketing, boring, counter‑sinking and tapping. Eliminates repeated re‑clamping errors, ensures coaxiality and positional accuracy for bores, mounting holes and threaded features. Complex hollow cavity formed in one clamping for stable dimensional consistency. |
| Surface Treatment Options | Clear anodizing, hard coat anodizing, deburring, passivation, bead blasting, custom coating available |
| Manufacturing Capacity | Prototype, low‑volume & mass production |
| Applicable Industries | Industrial Automation, Robotics, Hydraulic Pneumatic Equipment, Semiconductor Equipment, New Energy Machinery |
Custom OEM 6061‑T6 aluminum cavity housing manufactured by 5‑axis CNC milling compound process. Completed in single‑setup clamping to achieve excellent positional accuracy for multi‑direction bores and mounting holes. Features hollow deep cavity structure with multi‑side assembly bosses. Good structural rigidity and lightweight performance, widely used for automation equipment, pneumatic and semiconductor mechanical assemblies.
This custom aluminum cavity housing is produced by advanced 5‑axis CNC milling compound machining technology. Complex hollow inner cavity, multi‑direction stepped bore seats and multi‑side counter‑sunk mounting holes are finished within one‑setup clamping. This processing method effectively reduces cumulative positioning deviation and guarantees high positional accuracy and perpendicularity between inner cavity and all outer mounting features.
Precision milled hollow cavity ensures reliable fitting for internal modules and assemblies. Strict hole‑position and dimension control improves assembly stability under continuous equipment operation. Besides 6061‑T6 aluminum, multiple material selections are supported to meet various industrial working‑condition requirements.
Material Diversity: Apart from 6061‑T6 aluminum shown, we can also process 7075‑T6 aluminum, brass and stainless steel. Different materials can be selected for weight reduction, corrosion‑resistance or higher‑strength requirements.
‑ Industrial automation equipment mechanical housings ‑ Robotics module mounting base parts ‑ Pneumatic & hydraulic valve assembly housings ‑ Semiconductor equipment structural components ‑ New energy machinery custom mechanical components
Q1: Can you manufacture this aluminum cavity housing from my 2D drawings or 3D CAD files? A1: Yes, we provide full OEM custom service. Please send your drawing files for DFM evaluation and formal quotation.
Q2: What other material options are available besides 6061‑T6 aluminum? A2: 7075‑T6 aluminum, brass and stainless steel can be selected as alternative materials for different project requirements.
Q3: How do you guarantee dimensional accuracy for cavity housing parts? A3: We adopt 5‑axis single‑setup machining to avoid repeated clamping errors. Key dimensions will be inspected strictly to ensure assembly performance.
Q4: Do you support prototype trial and mass‑volume production? A4: We support prototype testing, low‑batch and large‑scale production with stable interchangeability.
Q5: What surface treatments are available for aluminum cavity housing? A5: We offer clear anodizing, hard‑coat anodizing, bead blasting and deburring to improve corrosion resistance and surface quality.
