5 Axis Cnc Precision Parts Aluminum Equipment Housing Chamfering & Deburring Treatment

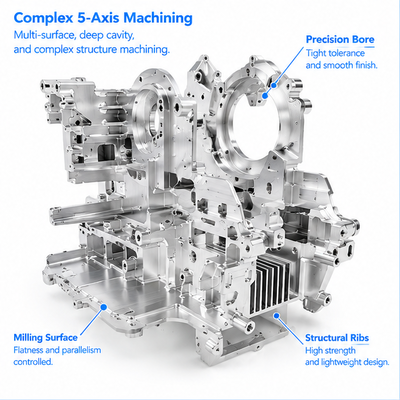

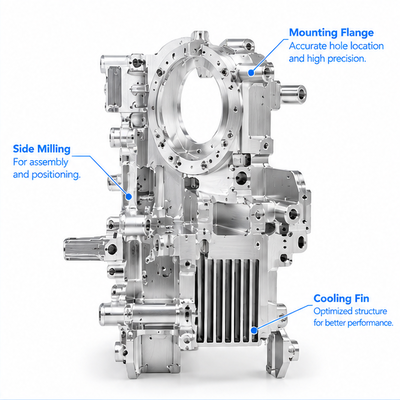

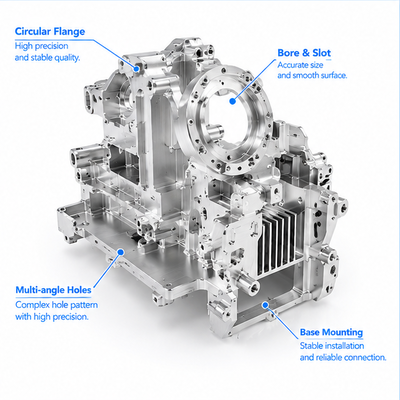

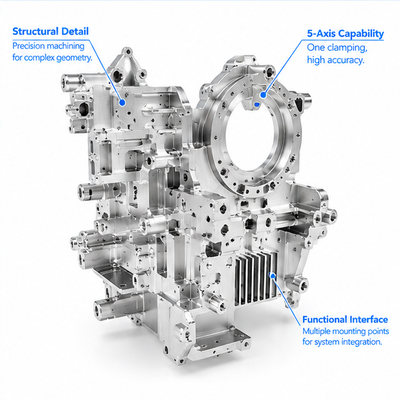

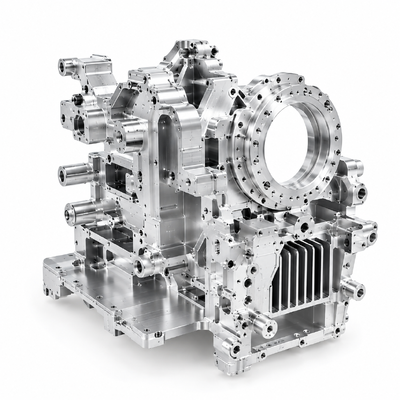

This custom CNC machined aluminum equipment housing is designed for precision mechanical equipment requiring complex geometry, accurate interfaces and stable dimensional performance. Manufactured with 5-axis CNC machining, the component integrates circular flanges, precision bores, mounting holes, slots, structural ribs and multi-angle features into one complex aluminum structure.

The component features a highly complex three-dimensional structure with multiple machining surfaces, large circular bores, mounting interfaces and internal structural details. The 5-axis machining process allows different surfaces and difficult-to-reach areas to be processed with fewer setups, helping maintain the positional relationship between critical features. Precision boring provides accurate internal diameters and smooth machined surfaces, while side milling and multi-angle hole machining create functional interfaces for equipment assembly.

• Material: Aluminum Alloy
• Process: 5-Axis CNC Machining
• Structure: Complex multi-surface equipment component
• Main Features: Circular flanges, bores, slots, holes and structural ribs
• Surface: Fine CNC machined finish
• Edge: Chamfered and deburred
• Tolerance: Manufactured according to engineering drawing
• Production: Prototype, small batch and repeat orders

• Complex 5-Axis Geometry: Multiple surfaces, deep areas and irregular structures require careful machining planning and multi-axis toolpath control
• Precision Bore Machining: Large circular bores and internal cylindrical surfaces are machined for accurate size, alignment and assembly interfaces
• Multi-Angle Features: Side milling, angled holes and different mounting surfaces require controlled positioning throughout the machining process
• Structural Ribs: Integrated ribs provide structural support while maintaining a relatively lightweight aluminum construction
• Functional Interfaces: Multiple mounting points, flanges and machined surfaces allow the component to connect with other equipment assemblies

• Complex aluminum structures manufactured from customer drawings
• 5-axis machining for multi-surface geometries
• Accurate bore, hole and flange machining
• Reduced repositioning for complex features
• Controlled dimensional consistency
• Suitable for custom OEM equipment
• Supports prototype and small-batch production

Suitable for custom precision equipment such as:

• Industrial Automation Equipment
• Robotics Systems
• Precision Mechanical Equipment
• Specialized Machinery
• Equipment Structural Assemblies
• Custom OEM Machinery
• Mechanical Integration Systems

For this type of complex aluminum component, the main machining challenge is maintaining accuracy between multiple functional surfaces. The manufacturing process can include:

5-axis machining is particularly useful for accessing multiple surfaces while reducing unnecessary repositioning during production.

Critical areas are inspected according to the engineering drawing, including:

• Bore diameter
• Hole position
• Flange dimensions
• Mounting interfaces
• Machined surfaces
• Overall dimensions
• Structural alignment
• Chamfer and deburring quality

We manufacture custom aluminum precision components based on customer drawings, 3D CAD models and samples. Please provide:

2D Drawing | 3D CAD Model | STEP File | Material | Quantity | Surface Treatment Requirements

Our engineering team can review the part structure and machining requirements before production.

Can you manufacture this complex aluminum component from our drawing?
Yes. We manufacture custom CNC components based on 2D drawings, 3D CAD models or physical samples.

Can you machine complex structures with 5-axis CNC?
Yes. 5-axis machining is suitable for multi-surface structures, deep areas, angled features and complex contours.

Can you machine precision bores and mounting holes?
Yes. Bore dimensions, hole positions and other critical interfaces can be manufactured according to drawing requirements.

What aluminum materials can you process?
Common aluminum alloys such as 6061 and 6061-T6 can be processed, subject to the customer's specifications.

Do you accept small-batch production?
Yes. Prototype, small-batch and repeat OEM production are supported.

How can I get a quotation?
Send your drawing or 3D CAD file, material and required quantity for engineering review and quotation.
