Complex Multi Angle Milling 5 Axis CNC Machining Parts Aluminum Structural Brackets

Product Summary

High-precision 5-axis CNC machined aluminum structural brackets designed for complex aerospace, automotive, and robotic assemblies. These components feature intricate multi-angle geometries, precise coaxial bores, and lightweight structural ribs that are impossible to achieve with standard 3-axis machining. Our advanced 5-axis simultaneous milling capabilities ensure superior surface finishes, tight positional tolerances, and reduced setup times for high-complexity parts.

Key Specifications

Materials & Processing Expertise

Premium Material Selection:
For high-performance structural brackets, material selection is critical for strength-to-weight ratio:

• Aluminum 7075-T6: The primary choice for aerospace and high-stress structural components. It offers strength comparable to many steels but at a fraction of the weight. Its excellent machinability allows for the creation of thin walls and complex rib structures without deformation.
• Aluminum 6061-T6: A versatile general-purpose alloy with good corrosion resistance and weldability. Ideal for prototypes and less stress-critical structural mounts where cost-effectiveness is a priority.
• Titanium Grade 5 (Ti-6Al-4V): For extreme environments requiring high heat resistance and exceptional strength. While harder to machine, our specialized tooling ensures clean cuts and extended tool life.

Advanced 5-Axis Processing Technology:
Our manufacturing process leverages true 5-axis capabilities to overcome geometric limitations:

• Single-Setup Machining: By utilizing 5-axis simultaneous movement, we can machine five sides of the part in a single clamping. This eliminates cumulative errors from re-fixturing, ensuring perfect concentricity between the multiple bores and precise angular relationships seen in the design.
• Complex Undercut & Rib Machining: The intricate internal ribs and external contours are machined using specialized ball-nose end mills with optimized tool paths. This prevents tool interference and allows for smooth transitions between vertical and horizontal surfaces.
• Vibration Damping Strategies: For deep pocket milling and thin-wall features, we employ dynamic milling strategies (trochoidal milling) to maintain constant chip load. This reduces heat generation and vibration, preventing part distortion and ensuring dimensional stability.
• Surface Finish Optimization: 5-axis machining allows us to tilt the part relative to the cutter, maintaining optimal cutting angles. This results in superior surface quality on complex curves, often eliminating the need for secondary polishing operations.

Product Description

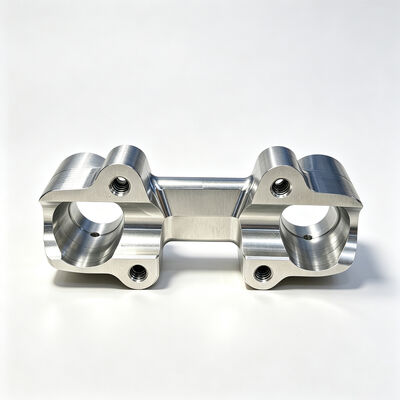

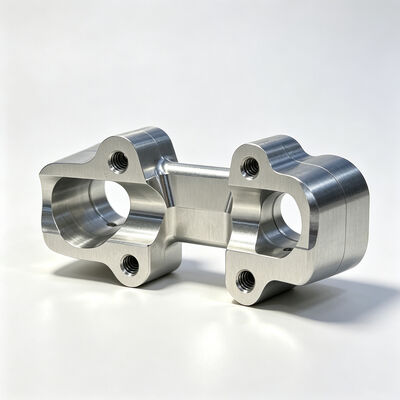

Achieve uncompromising precision for your most complex assemblies with our 5-axis CNC machined structural brackets. As shown in the image, these components feature a sophisticated "H" or cross-brace geometry with multiple mounting points and precise bore alignments. Such designs are typical in robotics, optical mounting systems, or automotive suspension where rigidity and weight reduction are paramount.

Traditional 3-axis machining would require multiple setups and custom fixtures to produce this part, leading to higher costs and potential alignment errors. Our 5-axis process streamlines production, delivering tighter tolerances and faster turnaround times. Whether you need a functional prototype for testing or a low-volume production run, our engineering team ensures every contour and hole meets your exact specifications.

FAQ

Q1: Why is 5-axis machining necessary for this type of bracket?
A: This bracket features bores and mounting surfaces on multiple non-parallel planes. 5-axis machining allows us to reach all these features in a single setup, ensuring perfect alignment between holes that would otherwise be misaligned if the part were moved between different machine setups.

Q2: Can you machine thin walls without them vibrating or breaking?
A: Yes. We use specialized dynamic milling strategies and high-frequency spindles to minimize cutting forces. We also optimize fixturing to support thin sections during machining, preventing chatter and ensuring straight, accurate walls.

Q3: What file formats do you need for a 5-axis quote?
A: Please provide a 3D CAD model in STEP (.stp) or IGES (.igs) format. Since 5-axis parts are complex, a 2D PDF drawing with critical tolerances and thread callouts is also highly recommended to ensure we quote accurately.

Q4: Do you offer post-processing for these aluminum parts?
A: Absolutely. We offer bead blasting for a uniform matte finish, clear or black anodizing for corrosion resistance, and passivation. For 7075 parts, we can also apply chromate conversion coating for enhanced protection.
